Technical Specifications

Application

FRAC MAXX is designed for rugged oilfield service where 250PSI service is required. It’s NBR tube and NBR/CR cover make it ideal for handling a wide range of petroleum products as well as for 98% water and sand mixtures for FRAC tank connections. 4:1 Safety Factor.

Construction

Tube - NBR Blended
Reinforcement - Plies of synthetic cord with one anti-static wire
Cover - CR / NBR Blend

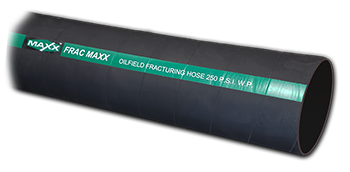

Branding - FRAC MAXX OILFIELD FRACTURING HOSE 250 PSI

Temperature Range

-32°C to +93°C (-26°F to +199°F)

Standard Lengths

100 ft lengths

Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No.
I.D. Inches
O.D. Inches
Max W.P. @ 70°F/20°C
Bend Radius
Approx. Wt. Per. Ft. Lbs.
Burst PSI
FRAC-4 4 4.76 250 32 Inches 3.440 1000
