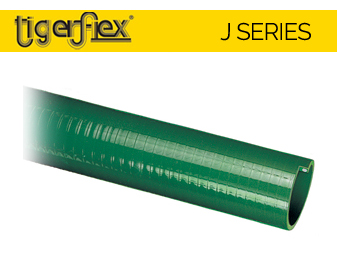

TIGERFLEX TYPE "J" PVC SUCTION HOSE
Request Info
Application
For construction pumps, septic tank and marine pump out service, mining and quarry use. PVC is resistant to some chemicals, acids and alkalis. Series J is MSHA listed for flame resistance for use in mines.
Construction
Tube- Smooth olive green PVC
Reinforcement- Green PVC helix
Cover- Solid olive green PVC with excellent weather and abrasion resistance
Temperature Range
-20°C to +65°C (-4°F to +150°F)
Standard Lengths
100ft no cutting
Notes
*Other sizes available on request
Working pressures are calculated at 70 degrees F (20 degrees C). Maximum working pressure decreases as temperature increases. Pressure ratings can only be achieved using proper coupling procedures. Bend radius is calculated at 70 degrees F (20 degrees C). Flexibility may vary at different temperatures. Please contact IRP if you have concerns regarding your application.
Parts No. |
I.D. Inches |
O.D. Inches |
Max W.P. @ 70°F/20°C |
Bend Radius |
Vacuum Rating (in Hg) 68F |
Approx. Wt. Per. Ft. Lbs. |
| TIGER-J-.75 | 3/4 | 1.01 | 110 | 3 | 28 | 0.190 |
| TIGER-J-1 | 1 | 1.26 | 85 | 3 | 28 | 0.260 |
| TIGER-J-1.5 | 1-1/2 | 1.83 | 70 | 5 | 28 | 0.480 |
| TIGER-J-2 | 2 | 2.32 | 65 | 7 | 28 | 0.660 |
| TIGER-J-3 | 3 | 3.43 | 60 | 10 | 28 | 1.240 |
| TIGER-J-4 | 4 | 4.50 | 50 | 15 | 28 | 1.850 |
